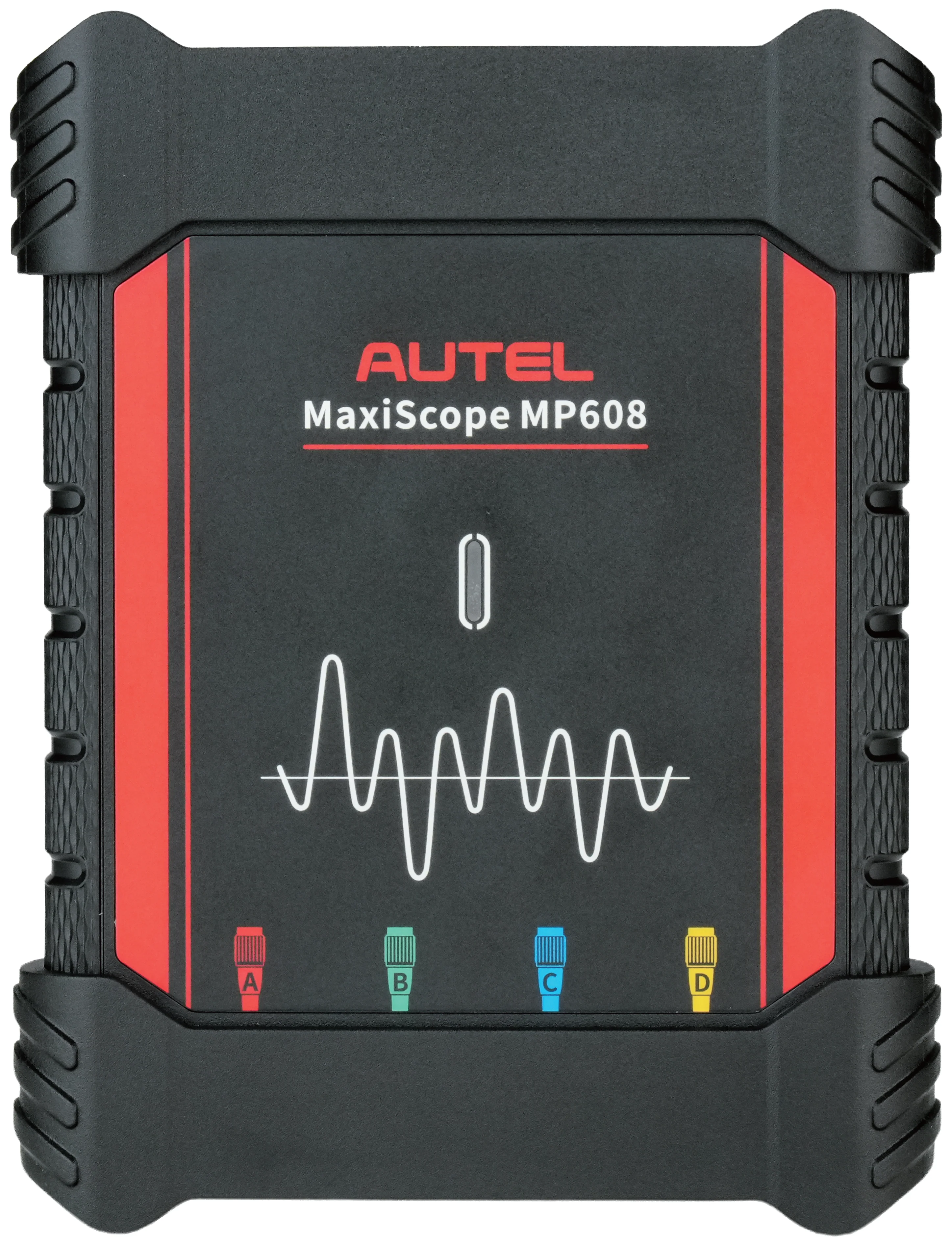

MP608 4-channel oscilloscope: The Autel MaxiScope MP608 is a portable, USB-powered, 4-channel automotive oscilloscope that transforms your Autel next-generation MaxiSys tablet into a professional diagnostic tool. With 12-bit vertical resolution, one-click setup, and support for modern protocols like CAN FD/FlexRay, the Autel MaxiScope MP608 delivers precise waveform analysis from an intuitive interface.
Compatible with Autel scanners: The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS906 MAX/ MS908S Pro II/ MS906 Pro/ MS906 Pro-TS/ Elite II Pro, MaxiCOM Ultra Lite S, MaxiIM IM608S II/ IM608 Pro II.
Professional AI-Powered Diagnostics: Achieve accurate and efficient diagnostics with AI-assisted analysis, ±1% measurement accuracy, and intelligent capture of complex and intermittent faults.
Advanced Waveform Analysis: Visualize and analyze signals with Oscilloscope, Spectrum, and XY modes, plus multi-view display for faster and more accurate fault diagnosis.
Connected & Flexible Workflow: Work seamlessly on both tablet and PC with cloud synchronization, work-order management, and waveform notes to improve productivity anywhere.

[keyfeatures]

Specification

Item	Description
Channels	4
Bandwidth	200MHz
Maximum Sample Rate	1 or 2 channels: 80 MS/s* 3 or 4 channels: 20 MS/s* * MS/s = mega samples per second 1) Select arbitrary one channel, the maximum sample rate is 80 MS/s. 2) Select two channels (AC, BC, AD, or BD), the maximum sample rate is also 80 MS/s. 3) Select two channels (AB/CD) or more than three channels, the maximum sample rate is 20 MS/s.
Input Ranges (Full Scale)	±50 mV to ±200 V
Sensitivity	10 mV/div to 40 V/div
Input Coupling	AC/DC
Input Impedance	1 MΩ in parallel with 25 pF
Vertical Resolution	12 bits
Buffer Memory	32M samples shared among active channels
Time Base Ranges	100 ns/div to 1000 s/div
Connection	USB 2.0
DC Accuracy	±1%
Storage Humidity Range	5 to 95 % RH, non-condensing

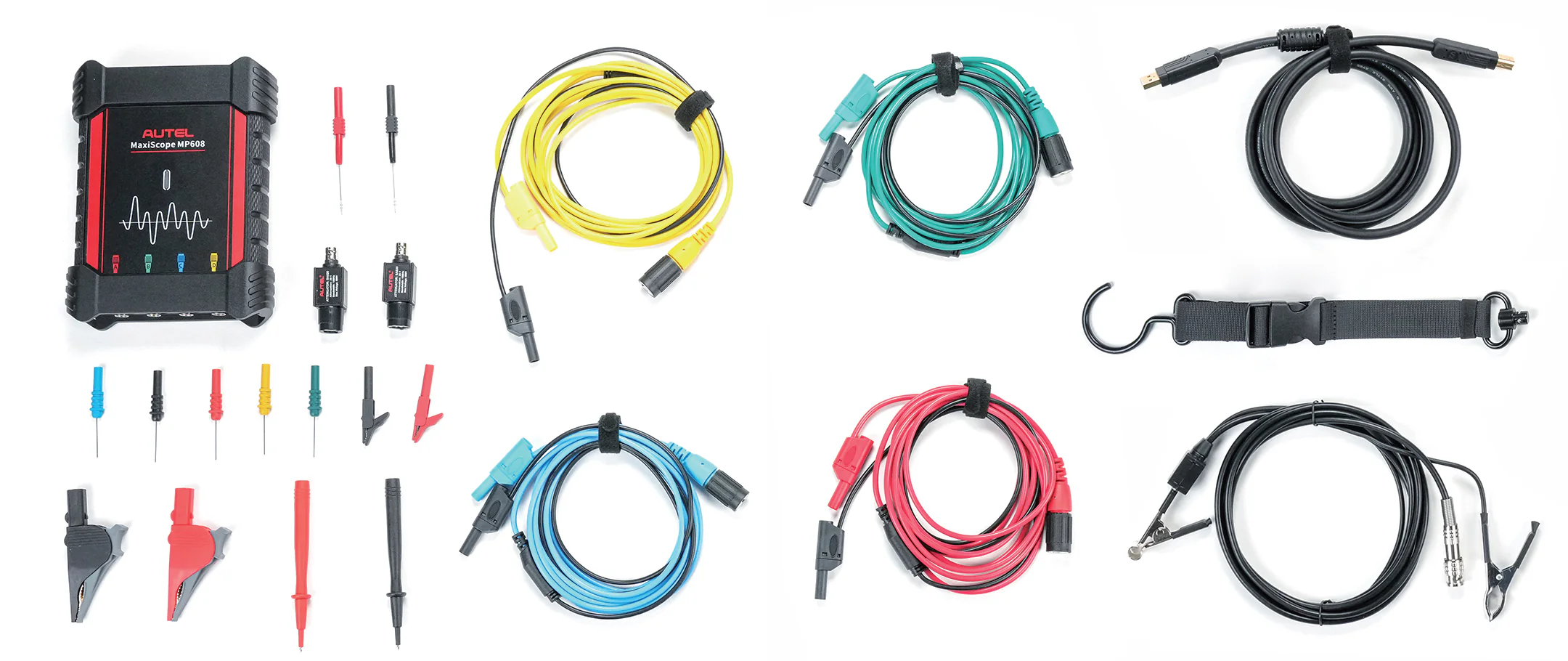

Packing List
